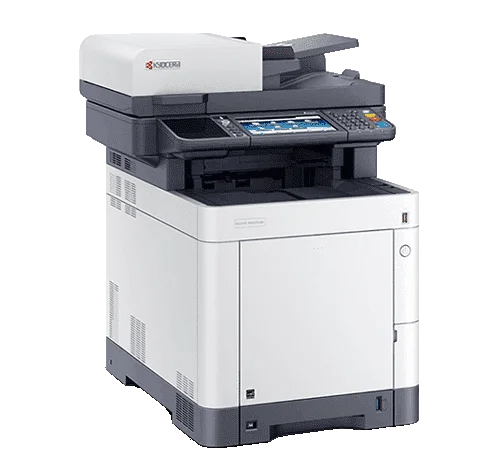

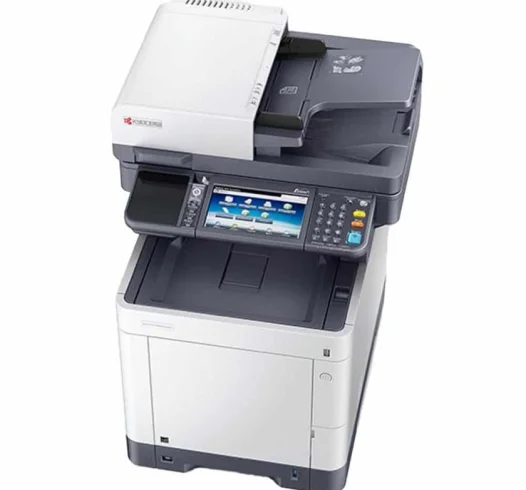

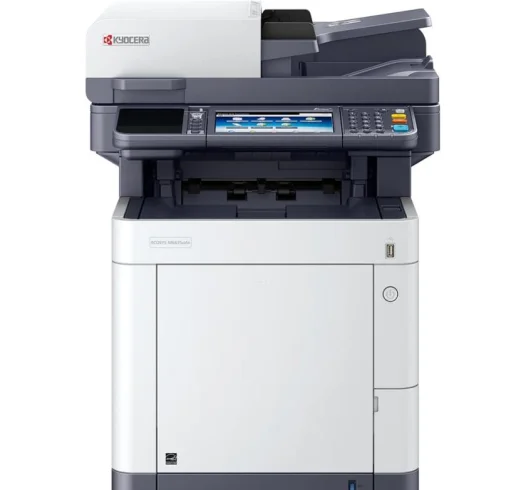

Kyocera ECOSYS m6635cidn

These new A4 colour devices are designed specifically for medium and large-sized work groups, offering both reliability and fastest output speeds in both colour and b/w and now complying with the newest environmental standards. The convenient touch panels provide simple, direct access to the multifunctionals’ numerous functions. What’s more, dedicated program keys and KYOCERA’s open solution platform HyPAS can help further optimize your document workflow. And helping your costs go down, these machines ensure excellent running costs.

Double-sided print, copy and scan.
Up to 35 pages per minute in A4 in colour and b/w.
HyPAS™ solution platform enables powerful customisations.
Quick scanning with Single Pass Duplex scanning.

Discuss your print solution View spec

Need toner or accessories for this printer?

Order Toner

Online Store

Colour

7-inch full-colour touch panel

Up to 35 A4 pages per minute

Quick scanning

Printer Specs

General
Copier
Printer
Scanner
Paper Handling
Fax
Options
Consumables

General type

Colour multifunctional for A4 format

User Guide

Warm-up time

Approx. 25 seconds or less

User Guide

Engine Speed

Up to 35 pages A4 per minute in colour and black and white

Power consumption

Printing: 523 W, Ready mode: 74 W, Ready mode: 84 W, Sleep mode: 0.6 W

Warranty

2-year warranty as standard. KYOCERA guarantees the drum and developer for 3 years or 200,000 pages (whichever occurs sooner), provided each device is used and cleaned in accordance with the service instructions

Max. original size

A4/legal

Zoom range

25 – 400 % in 1% steps

Image adjustments

Text + Photo, Photo, Text, Map, Printed document

Continuous copy

1 – 999

Preset magnification ratios

7 Reductions/5 Enlargements

Digital features

Scan-once-copy-many, electronic sort (collate), ID card copy, 2in1, 4in1, auto cassette change, Skip blank page

Processor

ARM Cortex-A9 Dual core 1,2 GHz

Features

Encrypted PDF Direct Print, IPP printing, e-mail printing, WSD print, secure printing via SSL, IPsec, SNMPv3, quick copy, proof and hold, private print, job storage and job management functionality

Fonts

93 outline fonts (PCL), 93 fonts (KPDL 3), 8 fonts( Windows Vista), 1 Bitmap font 45 types of one-dimensional barcodes, 1 type of two-dimensional barcode (PDF417)

Applicable OS (Print)

All current Windows operating systems, MAC OS X Version 10.8 or higher, Unix, Linux as well as other operating systems on request

Driver Guide

Scan functionalities

Scan-to-Email, Scan-to-FTP, Scan-to-SMB, Scan to USB Host, Local/Network TWAIN , WIA , WSD scan

Scan features

Colour scan, integrated address book, Active Directory support, encrypted data transfer, multi send (e-mail, fax, SMB/FTP folder, print) at once, Blank page skip

Max. scan size

A4 / legal

Original recognition

Text, photo, text + photo, light text, optimised for OCR

Scan speed

62 ipm (300 dpi, A4, b/w), 46 ipm (300 dpi, A4 colour), 46 ipm (300 dpi, A4, b/w), 32 ipm (300 dpi, A4 colour)

Scan resolution

600, 400, 300, 200 dpi, 256 greyscales per colour

File Type

TIFF, PDF, PDF/A, JPEG, XPS, Open XPS, Encrypted PDF, High compression PDF, PDF/A-1a/b, PDF/A-2a/b/u, MS Office file and Serchable PDF (optional Scan Extension Kit(A) is required)

Input Capacity

100-sheet multi-purpose tray, 60–220g/m2, A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (70 x 148 to 216 x 356 mm), 250-sheet Standard universal paper cassette, 60–163 g/m2, A4, A5, A6, B5, B6, Letter, Legal, Folio, Custom (105 x 148 – 216 x 356 mm).

Max. input capacity with options

1,850 sheets

Output capacity

250 sheets face-down with paper full sensor

Duplex unit

Duplex as standard supports 60–163 g/m2, A4, A5, B5, Letter, Legal

Document processor

Dual Scan Document Processor: 100-sheet, 50–120 g/m², A4, A5, A6, B5, Letter, Legal, Custom (105 x 148 to 216 x 356 mm)

Compatibility

ITU-T Super G3

Scanning speed

2.0 seconds or less

Scanning density

Normal: 8 dot/mm x 3.85 line/mm (200 x 100 dpi), Fine: 8 dot/mm x 7.7 line/mm (200 x 200 dpi), Superfine: 8 dot/mm x 15.4 line/mm (200 x 400 dpi), Ultrafine: 16 dot/mm x 15.4 line/mm (400 x 400 dpi), Halftone: 256 grey scales

Fax features

Network fax, duplex transmission and reception, encrypted transmission and reception, polling transmission and reception, broadcast

Modem speed

Max. 33.6 kbps

Transmission speed

Max. 3 seconds (JBIG)

Max. original size

A4 / legal

Card Reader Holder 10

To integrate the USB IC Card Reader

HD-6

32 GB for easy document management

IB-36

Wireless LAN (802.11b/g/n) with Wi-Fi Direct

IB-51

Wireless LAN Interface (802.11b/g/n)

MD3-1024

1,024 MB RAM Expansion

PCL Barcode SD

Adds additional one- and two-dimensional barcodes to the KYOCERA device (as well as the resident and machine-readable fonts OCR-A, OCR-B)

UG-33

ThinPrint support

Data Security Kit (E) AC

In line with ISO 15408 (Common Criteria). Only 4in1 MFP-models carry official CC-Certification

HD-7

128 GB SSD hard disc for easy document management

IB-50

Gigabit-Ethernet board 10BaseT/100BaseTX/1000BaseT

KYOmulticode SD 3

Contains all the functionalities of PCL Barcode Flash plus Unicode font “Andale Mono World Type“ which allows the user to print Asian fonts (Japanese, Korean, current and traditional Chinese)

MDDR3-2GB

2,048 MB RAM Expansion

Scan extension Kit (A) AC

Scan to searchable PDF (embedded OCR) or to MS Office (docx, xlsx, pptx), HDD, SSD or SD-card is needed.

USB IC Card Reader + Card Authentication Kit (B)

Support for various authentication keys available

SH-13

Staple cartridge 2 x 1,500

TK-5280K

Microfine toner black for 13000 A4 Capacity of starter toner is black 6,000 pages. Average continuous toner yield in accordance with ISO/IEC 19798.

TK-5280Y

Average continuous yellow toner yield 11,000 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous yellow toner yield 5,000 pages in accordance with ISO/IEC 19798.

TK-5280C

Average continuous cyan toner yield 11000 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous cyan toner yield 5,000 pages in accordance with ISO/IEC 19798.

TK-5280M

Average continuous magenta toner yield 11,000 pages in accordance with ISO/IEC 19798. Capacity of starter toner: Average continuous magenta toner yield 6,000 pages in accordance with ISO/IEC 19798.
